1. Introduction & Overview
This work tackles two critical bottlenecks hindering the practical realization of Brownian token-based computing: complex circuit fabrication due to wire crossings and the inherently slow speed of thermally-driven computations. The authors propose a novel, crossing-free layout for a composite half-adder module and introduce the concept of overlaying artificial diffusion via external excitation (e.g., spin-orbit torques for skyrmions) to accelerate computation by orders of magnitude.
2. Core Concepts & Background
2.1 Brownian Computing Fundamentals
Brownian computing is a bio-inspired paradigm that harnesses the random thermal motion of discrete signal carriers ("tokens") to perform logic operations. Computations occur as tokens stochastically traverse a predefined circuit network connecting inputs to outputs. This approach is particularly promising for ultra-low-power applications, such as autonomous sensors that can harvest energy from their environment, turning the challenge of thermal noise in miniaturized devices into a functional advantage.
2.2 Magnetic Skyrmions as Tokens
Magnetic skyrmions are topologically protected, nano-scale whirls of magnetization that exhibit quasi-particle behavior. Their key attributes for Brownian computing include: stability across a wide temperature range (including room temperature), discrete nature, and the ability to undergo thermally activated diffusion. They can be manipulated by magnetic fields, field gradients, and spin torques, making them versatile candidates for token-based logic and memory applications.
3. Technical Contributions
3.1 Crossing-Free Circuit Design
A primary fabrication hurdle for 2D token systems is wire crossings in conventional circuit layouts. This paper presents an innovative design for a composite half-adder that entirely eliminates wire crossings. This layout not only simplifies experimental implementation but is also more compact, leading to a shorter token travel path and consequently faster computation times compared to traditional designs with crossings.
3.2 Artificial Diffusion via External Excitation
To address the slow, non-deterministic computation times inherent to pure Brownian motion, the authors propose superimposing an "artificial diffusion" mechanism. By applying an external, stochastic excitation (e.g., via spin-orbit torques for skyrmions), the random walk of tokens can be dramatically accelerated. This hybrid approach decouples computation speed from ambient temperature, allowing for speed-ups of several orders of magnitude at the cost of additional energy input for the driving mechanism.
4. Performance Analysis & Results
4.1 Computation Speed Enhancement
The key result is the quantitative potential for speed-up. While pure thermal diffusion leads to computation times that are often prohibitively long for practical applications, the overlay of artificial diffusion can reduce these times by several orders of magnitude. The effective diffusion coefficient $D_{\text{eff}}$ becomes the sum of the thermal ($D_{\text{th}}$) and artificial ($D_{\text{art}}$) components: $D_{\text{eff}} = D_{\text{th}} + D_{\text{art}}$. Since $D_{\text{art}}$ can be controlled by the external stimulus amplitude and frequency, it can be made to dominate, i.e., $D_{\text{art}} \gg D_{\text{th}}$.
4.2 Energy-Performance Trade-off
The system introduces a clear trade-off: massive speed gains are achieved at the expense of energy consumption for the external excitation. This creates a design space where systems can operate in pure Brownian mode for ultimate energy efficiency (harvesting only) or in hybrid/artificial mode for higher performance when energy is available. The crossing-free design contributes to energy efficiency by reducing path length and potential token-trapping sites.
5. Technical Details & Mathematical Framework
The motion of a skyrmion token can be modeled as a biased random walk. In the presence of an external driving force $\vec{F}$ (e.g., from spin-orbit torque) and a potential landscape $U(\vec{r})$ defined by the circuit geometry, the Langevin equation describes its dynamics:
$\gamma \frac{d\vec{r}}{dt} = -\nabla U(\vec{r}) + \vec{F} + \sqrt{2\gamma k_B T}\, \vec{\xi}(t) + \vec{\eta}_{\text{art}}(t)$
where $\gamma$ is the damping coefficient, $k_B T$ is the thermal energy, $\vec{\xi}(t)$ is Gaussian white noise representing thermal fluctuations, and $\vec{\eta}_{\text{art}}(t)$ represents the stochastic component of the artificial excitation. The mean traversal time $\langle \tau \rangle$ for a circuit of characteristic length $L$ scales inversely with the effective diffusion coefficient: $\langle \tau \rangle \propto L^2 / D_{\text{eff}}$.
6. Analysis Framework & Case Example
Case: Designing a Low-Power Environmental Sensor Node
Scenario: An autonomous sensor needs to process sporadic sensor readings (e.g., temperature threshold detection) with minimal energy consumption, primarily relying on harvested energy.
Framework Application:
- Mode Selection: Use pure Brownian computing mode during idle/low-energy periods. The sensor node is "asleep," and any computation relies solely on ambient thermal energy.
- Event Trigger: When a sensor reading requires processing, a small energy buffer is used to briefly activate the artificial diffusion mechanism (spin-orbit torque pulses).
- Accelerated Computation: The token (skyrmion) traverses the pre-designed, crossing-free half-adder circuit at an accelerated rate due to $D_{\text{art}}$, completing the logic operation (e.g., A+B) in milliseconds instead of seconds or minutes.
- Result & Return to Idle: The output is registered, the external excitation is switched off, and the system returns to the ultra-low-power Brownian-only mode, awaiting the next event.
7. Application Outlook & Future Directions
Near-term (3-5 years): Experimental demonstration of the proposed crossing-free half-adder with skyrmions in controlled lab settings. Research will focus on optimizing the artificial excitation mechanism (e.g., pulse shape, frequency) for maximum energy efficiency and reliable token guidance.
Mid-term (5-10 years): Development of integrated, hybrid Brownian-conventional co-processors for IoT and edge devices. These could handle specific, noise-tolerant tasks (e.g., sensor fusion, event detection) in their ultra-low-power Brownian mode, waking up a conventional processor only for complex computations.
Long-term (10+ years): Realization of large-scale, neuromorphic computing systems inspired by stochasticity in biological brains. Networks of Brownian circuits could mimic the probabilistic nature of synaptic transmission, potentially leading to novel hardware for stochastic machine learning algorithms and probabilistic computing. Research into other token systems beyond skyrmions (e.g., domain walls, bubbles) will also expand.
8. References

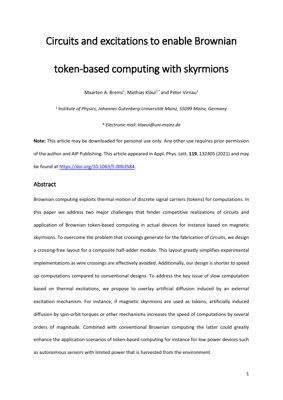

- M. A. Brems, M. Kläui, P. Virnau, "Circuits and excitations to enable Brownian token-based computing with skyrmions," Appl. Phys. Lett. 119, 132405 (2021).
- A. Fert, N. Reyren, V. Cros, "Magnetic skyrmions: advances in physics and potential applications," Nat. Rev. Mater. 2, 17031 (2017).
- R. P. Feynman, "There's Plenty of Room at the Bottom," Caltech Engineering and Science (1960).
- S. Datta et al., "Proposal for a Nanoscale Magnetic Brownian Ratchet," Phys. Rev. B 83, 144412 (2011).
- International Roadmap for Devices and Systems (IRDS™), 2022 Edition, IEEE.
- J. Grollier et al., "Neuromorphic spintronics," Nat. Electron. 3, 360–370 (2020).
9. Expert Analysis & Critical Review
Core Insight: Brems et al. aren't just tweaking Brownian computing; they're attempting a full-stack intervention. By attacking both the physical layout (crossing-free circuits) and the fundamental kinetics (artificial diffusion), they're pragmatically bridging the gap between a fascinating thermodynamic concept and a potentially manufacturable, performance-viable technology. This is less about pure physics and more about engineering a pathway to application.
Logical Flow: The argument is compellingly linear. Problem A (fabrication complexity) is solved with a clever topological redesign. Problem B (glacial speed) is tackled by introducing a controlled, energy-consuming "shaker" to the system. The combination directly addresses the two most common dismissal points against Brownian computing: "you can't build it" and "it's too slow." Using skyrmions as the exemplar is astute, as their well-studied physics and manipulation toolkit provide a concrete sandbox for these ideas.
Strengths & Flaws:
Strengths: The hybrid energy-speed trade-off is a masterstroke. It moves beyond the binary choice of slow/free vs. fast/expensive, enabling adaptive systems—a concept highly relevant for edge AI and IoT, as seen in research on dynamic voltage and frequency scaling (DVFS) for processors. The crossing-free design, while seemingly simple, is a critical piece of device physics often overlooked in theoretical proposals.
Flaws: The elephant in the room is system-level energy accounting. While the paper notes increased energy use for driving, a detailed comparison of Energy-per-Operation against even the most inefficient conventional CMOS is missing. The "several orders of magnitude" speed-up is promising but likely comes with a proportional energy cost. Furthermore, the reliability of logic operations under intense artificial noise needs rigorous statistical analysis—what's the error rate when you're vigorously shaking the tokens?
Actionable Insights: For researchers: Focus next on quantifying the energy-quality trade-off. Develop metrics akin to the "Joule per reliable bit" used in conventional logic and compare them across the Brownian-hybrid-conventional spectrum. For engineers: Explore material systems beyond chiral magnets for skyrmions. Synthetic antiferromagnets or multilayer stacks could offer faster dynamics and lower drive currents for the artificial diffusion mechanism. For investors: Watch for demonstrations of functional integration—a Brownian circuit coupled to a real sensor and a conventional microcontroller. That's the milestone that transitions this from a lab curiosity to a potential IP block for ultra-low-power SoCs.
In essence, this work provides a crucial engineering blueprint. It doesn't claim Brownian computing will replace von Neumann architectures, but it convincingly charts a course for where it could carve out a niche: the realm of energy-constrained, stochastic, and event-driven computation, much like the biological systems that inspired it.
